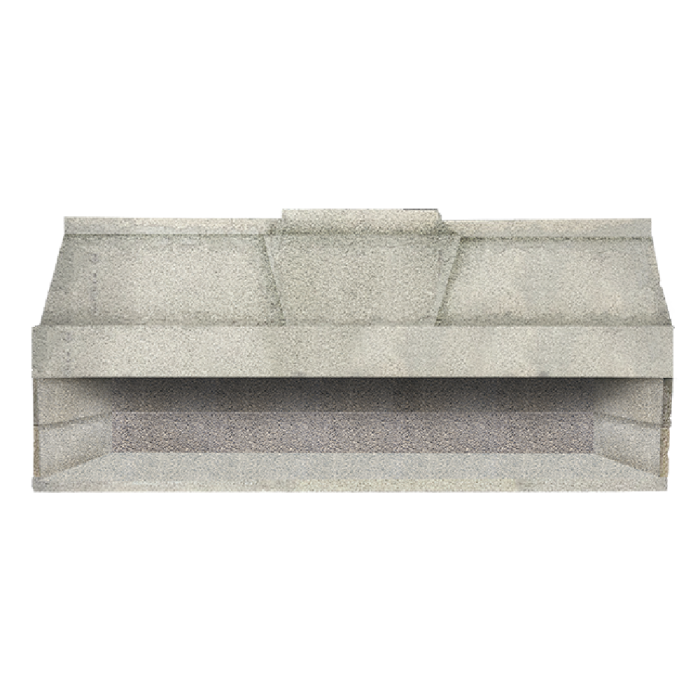

ISOKERN MAXIMUS LINEAR FIREBOX 4'

Availability: In stock
SKU
82L48

Please log in to add products to your cart.

Warehouse Information

Dallas:2 left

Chesapeake:1 left

Corona:0 left

Jacksonville:0 left

Cheyenne:2 left

Note: The inventory numbers provided here are not live. The numbers are based on inventory available after the previous day's close.

More Information

Weight:1160

Width:54

Height:32

Volume:36

Depth:36

The Maximus Linear Series is modern sophisticated utility and a work of art in one. Its sleek design can be customized to fit any aesthetic. Choose an open front or glass front firebox and finish it off with your choice of colored glass media or log set in driftwood finish. Isokern Linear Fireplace systems come with a Remote-Controlled Electronic Ignition System and Mechanical Exhaust Fan. The glass front unit does not use conditioned air from the room, complying with air quality control standards.



Available Sizes: 48 • 60 • 72 • 96 • 120



Open Front Firebox
Brochure | CAD Drawing | Spec Sheet
Installation Manual



Glass Front Firebox
Brochure | CAD Drawing | Spec Sheet
Installation Manual

 Minumum Framing Requirements  Weight
 56”W x 51”H x 29 1/2”D  1160 lbs
 Minumum Framing for Glass Front Option   Weight
 56”W x 64 1/2”H x 29 1/2”D  1652 lbs

Firebrick - Requires full firebrick on the bottom of the fireplace.

 Clearance to Combustibles  Dimension
 Unit front (Smoke Dome)  0 inches
 Unit sides and rear  1.5 inches
 Combustible sheathing above opening top  8 inches
 Sheathing or trim to opening sides  8 inches
 Mantel above opening  12 inches
 Opening to sidewall  24 inches
 Hearth Extension beyond front  20 inches
 Hearth Extension beyond sides  12 inches
 Combustible floor  0 inches
 Insulation from firebox and chimney  3 inches



ISOFLAMES LINEAR BURNER, B-VENT W/ DOWN-DRAFT DIVERTER, AND MECHANICAL DRAFT SYSTEM REQUIRED FOR COMPLETE SYSTEM INSTALLATION.
