ISOKERN VENT FREE FIREBOX 60"
Warehouse Information
Dallas:2 left
Chesapeake:7 left
Corona:3 left
Jacksonville:0 left
Cheyenne:0 left
More Information
Weight:1250
Width:54
Height:33
Volume:37.125
Depth:36
A gas fireplace that blends seamlessly into your home’s footprint is the Isokern’s Vent Free Series.
This series offers a variety of opening heights and is fully customizable to fit any design plan. With its large finished openings and see-thru availability, the Vent-Free Series is a perfect heating solution for any multi-family home, new home, remodeling project or outdoor concept.

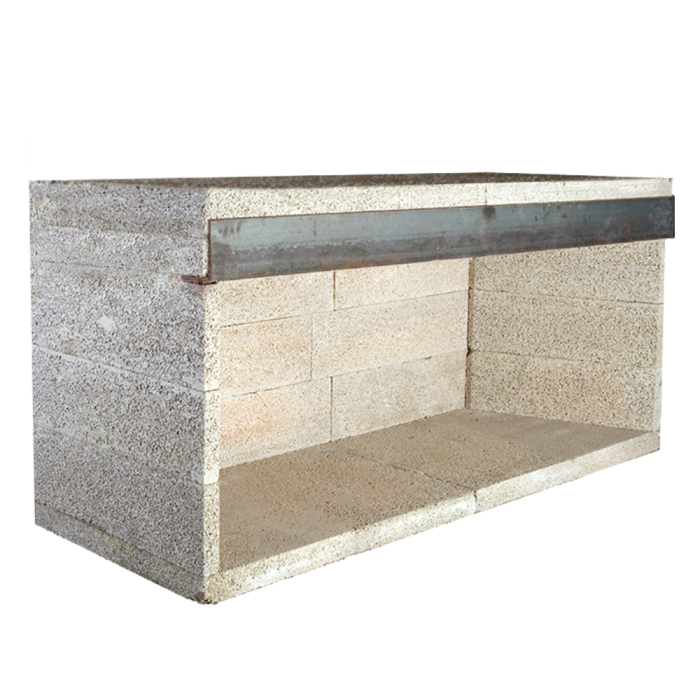

Available Sizes: 36 • 42 • 46 • 60 • 72NOTE: Picture shown with steel angle, this part is not included with the firebox and should be sourced locally.
| Minumum Framing Requirements | Weight |
| 74 1/2”W x 40 1/2”H x 25 1/4”D | 1400 lbs |
| Clearance to Combustibles | Dimension |
| Unit front (Smoke Dome) | 0 inches |
| Unit sides and rear | 0 inches |
| Combustible sheathing above opening top | 12 inches |
| Sheathing or trim to opening sides | 8 inches |
| Mantel above opening | increases with size of projection |
| Opening to sidewall | 12 inches* |
| Hearth Extension beyond front | 0 inches* |
| Hearth Extension beyond sides | 0 inches* |
| Combustible floor | 0 inches |
| Insulation from firebox and chimney | 3 inches |
*Please Note: Zero clearance to combustible material. Hearth extension and mantel clearances may vary by local code or burner/ gas log set manufacturer.
