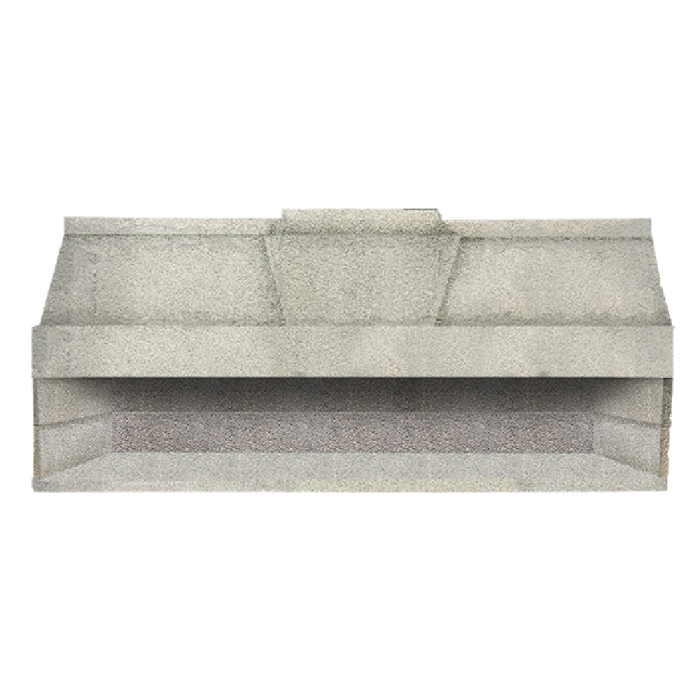

ISOKERN MAXIMUS LINEAR FIREBOX 8'
Warehouse Information
Dallas:1 left
Chesapeake:1 left
Corona:0 left
Jacksonville:0 left
Cheyenne:0 left
More Information
Weight:2200
Width:54
Height:30
Volume:67.5
Depth:72
The Maximus Linear Series is modern sophisticated utility and a work of art in one. Its sleek design can be customized to fit any aesthetic. Choose an open front or glass front firebox and finish it off with your choice of colored glass media or log set in driftwood finish. Isokern Linear Fireplace systems come with a Remote-Controlled Electronic Ignition System and Mechanical Exhaust Fan. The glass front unit does not use conditioned air from the room, complying with air quality control standards.
Available Sizes: 48 • 72 • 96 • 120
Open Front Firebox
Brochure | CAD Drawing | Spec Sheet
Installation Manual
Glass Front Firebox
Brochure | CAD Drawing | Spec Sheet
Installation Manual
| Minumum Framing Requirements | Weight |
| 112”W x 51”H x 29 1/2”D | 2200 lbs |
| Minumum Framing for Glass Front Option | Weight |
| 112”W x 64 1/2”H x 29 1/2”D | 3132 lbs |
Firebrick - Requires full firebrick on the bottom of the fireplace.
| Clearance to Combustibles | Dimension |
| Unit front (Smoke Dome) | 0 inches |
| Unit sides and rear | 1.5 inches |
| Combustible sheathing above opening top | 8 inches |
| Sheathing or trim to opening sides | 8 inches |
| Mantel above opening | 12 inches |
| Opening to sidewall | 24 inches |
| Hearth Extension beyond front | 20 inches |
| Hearth Extension beyond sides | 12 inches |
| Combustible floor | 0 inches |
| Insulation from firebox and chimney | 3 inches |
ISOFLAMES LINEAR BURNER, B-VENT W/ DOWN-DRAFT DIVERTER, AND MECHANICAL DRAFT SYSTEM REQUIRED FOR COMPLETE SYSTEM INSTALLATION.
