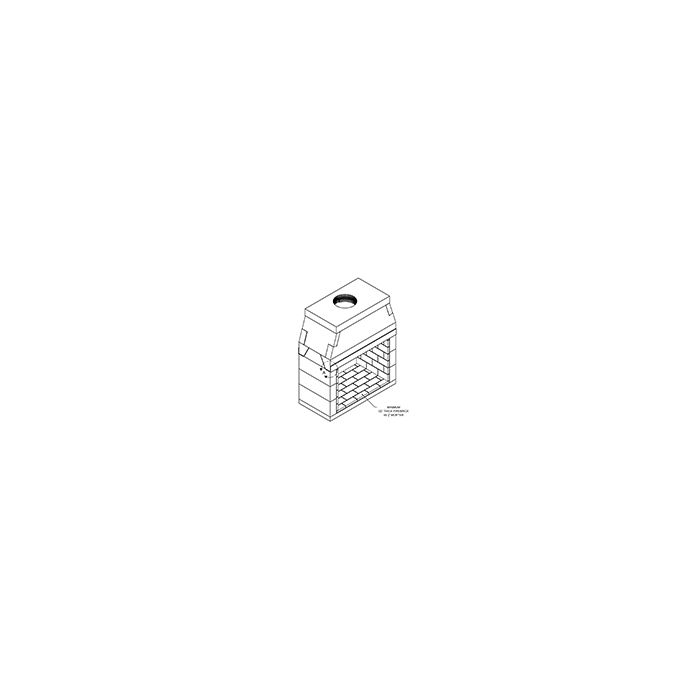

80S42ST- CUSTOM ISOKERN STANDARD FIREBOX 42" SEE-THRU
Warehouse Information
Dallas:0 left
Chesapeake:2 left
Corona:0 left
Jacksonville:0 left
Cheyenne:0 left
More Information
Weight:1200
Width:54
Height:34
Volume:38.25
Depth:36
As the first Isokern modular fireplace introduced in the United States, the modular construction of the Standard Series allows you to unleash your creative desires with a fireplace as unique as you are. Whether you choose wood burning, natural gas or liquid propane, the Standard Series sets the standard. In an outdoor application, this fireplace can be finished with any veneer including brick, stone, stucco, or tile.
Custom Available Sizes: 36 • 42 • 46
CUSTOM ISOKERN FIREPLACES CARRY NO LISTING, UL OR OTHERWISE.
| Minumum Framing Requirements | Weight |
| To Be Determined On Site | 1200 lbs |
| Clearance to Combustibles | Dimension |
| Unit front (Smoke Dome) | 0 inches |
| Unit sides and rear | 1.5 inches |
| Combustible sheathing above opening top | 8 inches |
| Sheathing or trim to opening sides | 8 inches |
| Mantel above opening. | 14 inches |
| Opening to sidewall | 26 inches |
| Hearth Extension beyond front | 20 inches |
| Hearth Extension beyond sides | 12 inches |
| Insulation from firebox and chimney | 3 inches |
FOR USE WITH ISOKERN ECO-STEEL CLASS-A CHIMNEY
X-VENTISO MECHANICAL VENTILATION ASSISTANCE IS REQUIRED FOR THIS DESIGN. PLEASE CONSULT AN ISOKERN SALES REPRESENTATIVE ON SPECIFIC INSTALLATION REQUIREMENTS.
