DM54 OFFSET BLOCK
Warehouse Information
Dallas:465 left
Chesapeake:342 left
Corona:10 left
Jacksonville:165 left
Cheyenne:37 left
More Information
Weight:81
Width:22
Height:6
Volume:1.91
Depth:25

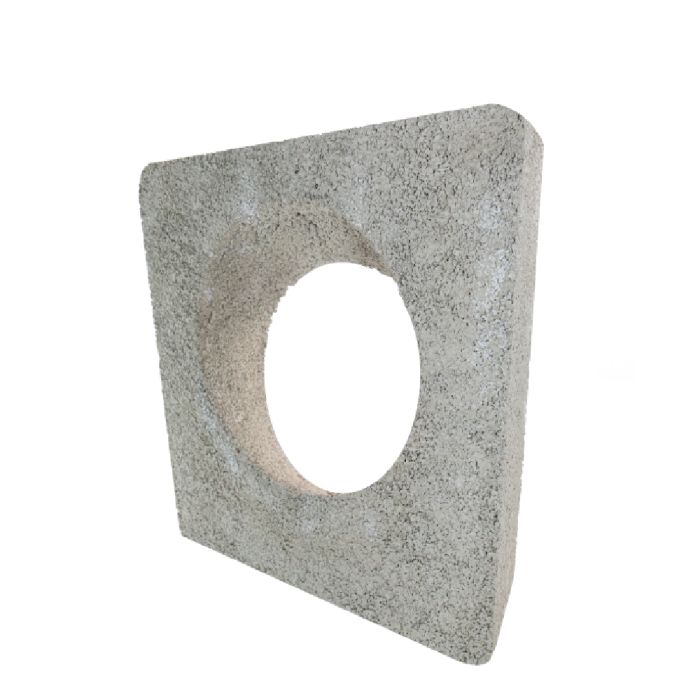

The DM54 Offset Block is a component of the DM54 Chimney System which is a zero clearance system made with our Icelandic pumice, a natural insulator, separating our system from all other chimneys.
The DM54 Offset Block is used to offset 3" or 30 degrees.
DM54 Components
CAD Drawing
Width | Length | Height |
21-1/2" | 25" | 3" |
Please Note: Offset blocks require 1-1/2”clearance to combustible material. “Combustibles” are defined as “normal construction materials” and are considered to be: wood framing materials, particle board, mill board, plywood sub-flooring, plywood paneling and wood flooring.
