ISOKERN BVETTO FIREBOX 36"
Warehouse Information
Dallas:3 left
Chesapeake:5 left
Corona:7 left
Jacksonville:4 left
Cheyenne:12 left
More Information
Weight:1080
Width:54
Height:31
Volume:34.875
Depth:36

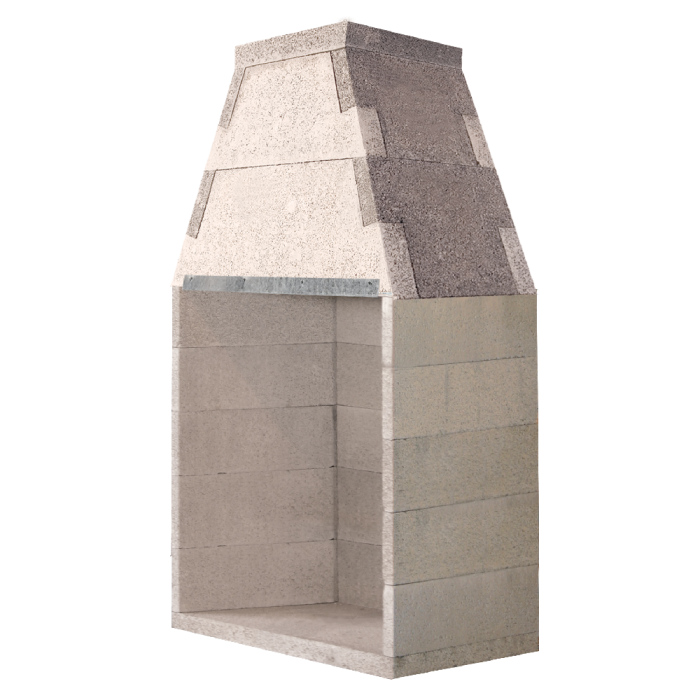

As the first and only field assembled gas appliance fireplace, the Isokern Bvetto Series offers the largest available opening heights in the industry of 52”. With our proprietary quick fire ignition system, the Isokern Bvetto comes complete with our exclusive Isoflames Stadium Burner and Remote Electronic Ignition.
Available Sizes: 36 • 46
| Minumum Framing Requirements | Weight |
| 44”W x 71 1/4”H x 26 3/4”D | 1116 lbs |
| Clearance to Combustibles | Dimension |
| Unit front (Smoke Dome) | 0 inches |
| Unit sides and rear | 1.5 inches |
| Combustible sheathing above opening top | 8 inches |
| Sheathing or trim to opening sides | 8 inches |
| Mantel above opening | 12 inches |
| Opening to sidewall | 24 inches |
| Hearth Extension beyond front | 20 inches |
| Hearth Extension beyond sides | 12 inches |
| Combustible floor | 0 inches |
| Insulation from firebox and chimney | 3 inches |
ISOFLAMES BVETTO BURNER/GAS LOG SET, B-VENT PIPE W/ DOWN DOWN DRAFT DIVERTER, AND HIGH-TEMP LINTEL REQUIRED FOR COMPLETE SYSTEM INSTALLATION.
Please Note: Different height options are available for the Bvetto fireplace. One additional backwall and two additional sidewalls can be added to obtain an opening of 42” tall before brick is installed. Two additional backwalls and four additional sidewalls can be added to obtain an opening of 52½” tall before brick is installed.
