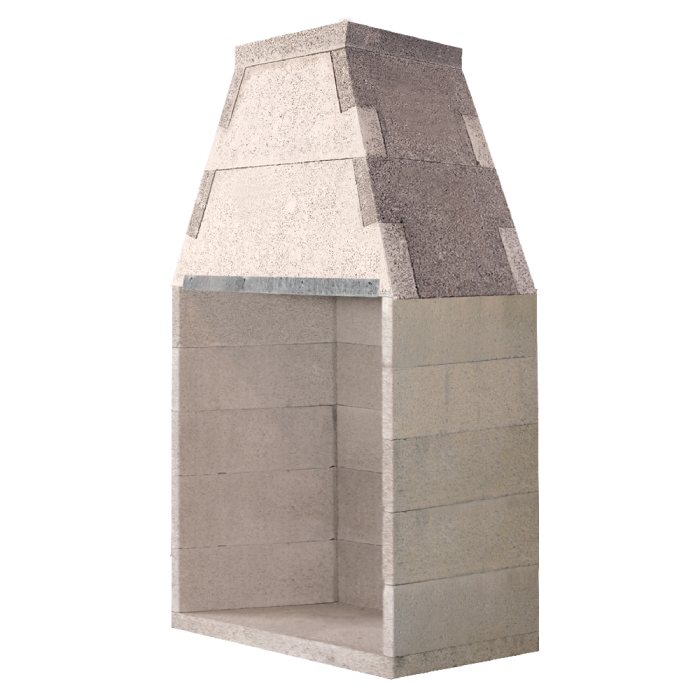

ISOKERN BVETTO FIREBOX 46"

Availability: In stock
SKU
80B46

Please log in to add products to your cart.

Warehouse Information

Dallas:4 left

Chesapeake:21 left

Corona:4 left

Jacksonville:4 left

Cheyenne:15 left

Note: The inventory numbers provided here are not live. The numbers are based on inventory available after the previous day's close.

More Information

Weight:1301

Width:54

Height:35

Volume:39.375

Depth:36

As the first and only field assembled gas appliance fireplace, the Isokern Bvetto Series offers the largest available opening heights in the industry of 52”. With our proprietary quick fire ignition system, the Isokern Bvetto comes complete with our exclusive Isoflames Stadium Burner and Remote Electronic Ignition.

Available Sizes: 36 • 46



Brochure  |  CAD Drawing  |  Spec Sheet
Installation Manual

 Minumum Framing Requirements  Weight
 54”W x 71 1/4”H x 26 3/4”D  1383 lbs



 Clearance to Combustibles  Dimension
 Unit front (Smoke Dome)  0 inches
 Unit sides and rear  1.5 inches
 Combustible sheathing above opening top  8 inches
 Sheathing or trim to opening sides  8 inches
 Mantel above opening  12 inches
 Opening to sidewall  24 inches
 Hearth Extension beyond front  20 inches
 Hearth Extension beyond sides  12 inches
 Combustible floor  0 inches
 Insulation from firebox and chimney  3 inches



ISOFLAMES BVETTO BURNER/GAS LOG SET, B-VENT PIPE W/ DOWN DOWN DRAFT DIVERTER, AND HIGH-TEMP LINTEL REQUIRED FOR COMPLETE SYSTEM INSTALLATION.

Please Note: Different height options are available for the Bvetto fireplace. One additional backwall and two additional sidewalls can be added to obtain an opening of 42” tall before brick is installed. Two additional backwalls and four additional sidewalls can be added to obtain an opening of 52½” tall before brick is installed.
