ISOKERN MAGNUM FIREBOX 60"
Warehouse Information
Dallas:0 left
Chesapeake:7 left
Corona:7 left
Jacksonville:12 left
Cheyenne:17 left
More Information
Weight:2478
Width:54
Height:31
Volume:69.75
Depth:72
Looking for a larger, more dramatic opening fireplace? Look no further than the Isokern Magnum fireplace. This fireplace system is ideal for large custom homes, hotel lobbies and restaurants. Boasting opening heights of 38” tall and up to 72” wide, it will make a statement in any room.
Available Sizes: 28 • 36 • 42 • 48 • 60 • 72

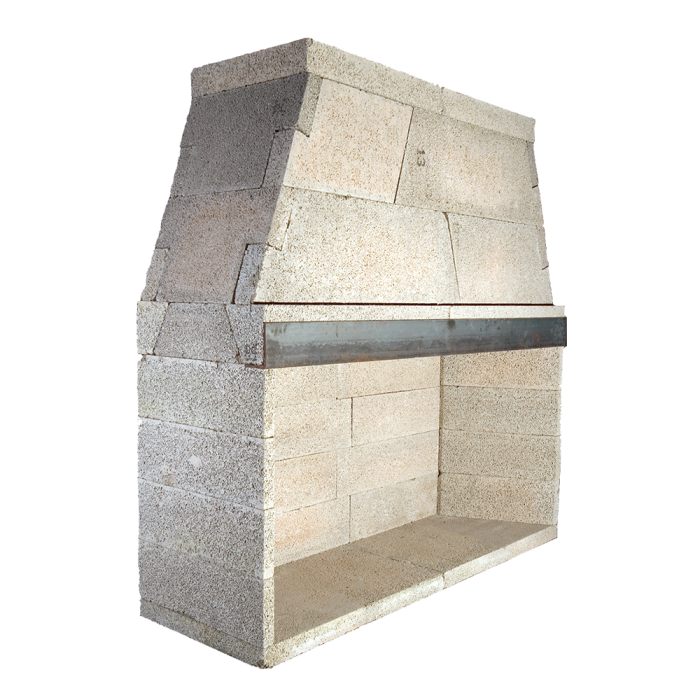

NOTE: Picture shown with steel angle, this part is not included with the firebox and should be sourced locally.
| Minumum Framing Requirements | Weight |
| 76 1/2”W x 87 1/2”H* x 29 1/2”D | 2255 lbs |
*FireLite Application - Add a minimum of 7.5’’
Firebrick - 4’’ firebrick on sidewalls of fireplace, 2 1/2’’ on backwall and floor.
| Clearance to Combustibles | Dimension |
| Unit front (Smoke Dome) | 0 inches |
| Unit sides and rear | 1.5 inches |
| Combustible sheathing above opening top | 24 inches |
| Sheathing or trim to opening sides | 9 inches |
| Mantel above opening | 24 inches |
| Opening to sidewall | 48 inches |
| Hearth Extension beyond front | 30 inches |
| Hearth Extension beyond sides | 12 inches |
| Combustible floor | 7.5 inches |
| Insulation from firebox and chimney | 3 inches |
FOR USE WITH ISOKERN DM54 CHIMNEY SYSTEM OR Eco-Steel CLASS-A CHIMNEY
