ISOKERN MAGNUM+ FIREBOX 84"
Warehouse Information
Dallas:0 left
Chesapeake:0 left
Corona:0 left
Jacksonville:0 left
Cheyenne:1 left
More Information
Weight:3310
Width:54
Height:44
Volume:99
Depth:72
When you’re designing a space that’s larger than life, you need a fireplace to match it! NEW from Isokern is our ground-breaking Magnum+ Fireplace.
Boasting widths up to 10 feet and finished opening heights of 44”, this stately fireplace is the largest UL listed fireplace on the market. Earthcore is always looking to expand the boundaries of fire, and with the Magnum+, fire has no boundaries.
Available Sizes: 84 • 96 • 108 • 120

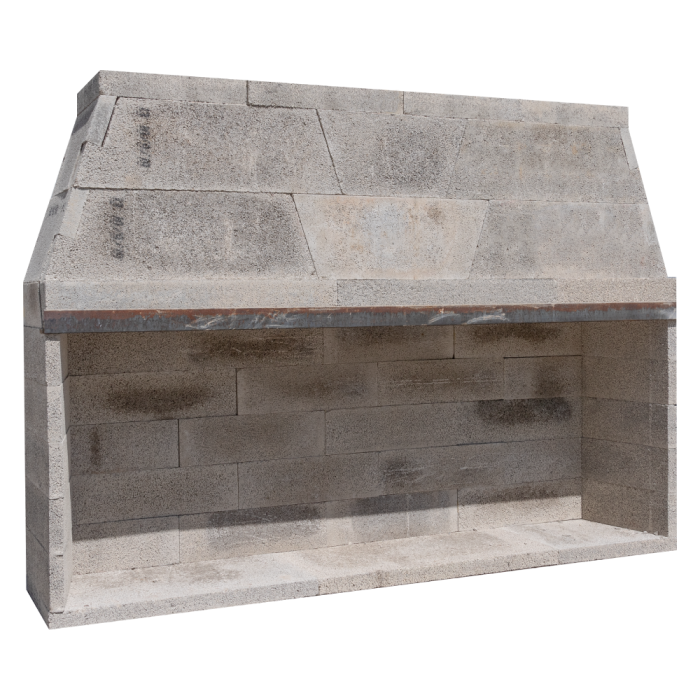

NOTE: Picture shown with steel angle, this part is not included with the firebox and should be sourced locally.
| Minumum Framing Requirements | Weight |
| 99”W x 97”H x 29 1/2”D | 3310 lbs |
Firebrick Requirement - 4’’ firebrick on sidewalls of fireplace, 2 1/2’’ on backwall and floor.
| Clearance to Combustibles | Dimension |
| Unit front (Smoke Dome) | 0 inches |
| Unit sides and rear | 1.5 inches |
| Combustible sheathing above opening top | 24 inches |
| Sheathing or trim to opening sides | 9 inches |
| Mantel above opening | 24 inches |
| Opening to sidewall | 48 inches |
| Hearth Extension beyond front | 30 inches |
| Hearth Extension beyond sides | 12 inches |
| Combustible floor | N/A |
| Insulation from firebox and chimney | 3 inches |
For USE WITH Eco-Steel/Eco-Steel+ CLASS-A CHIMNEY ONLY
