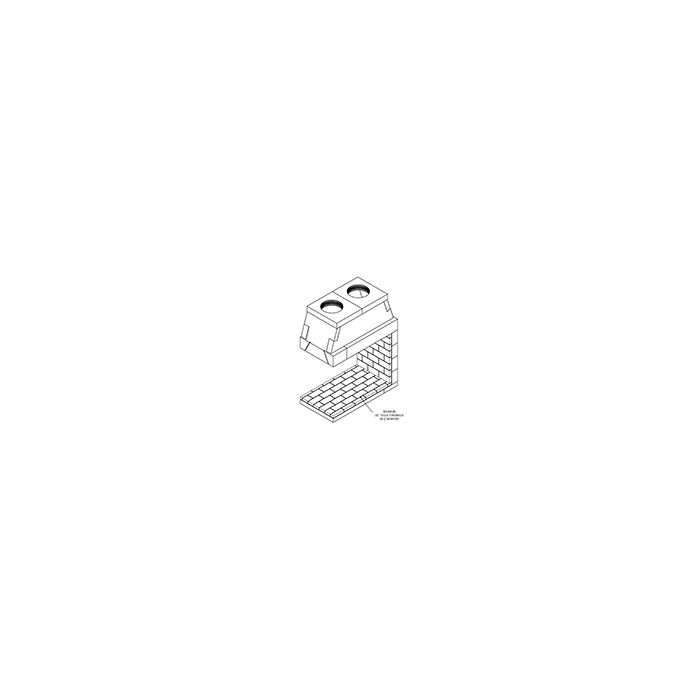

CUSTOM ISOKERN MAGNUM FIREBOX 48" PENINSULA
Availability: Dropship
SKU
82048P
Warehouse Information
Dallas:0 left
Chesapeake:0 left
Corona:0 left
Jacksonville:0 left
Cheyenne:0 left
Note: The inventory numbers provided here are not live. The numbers are based on inventory available after the previous day's close.
More Information
Weight:1598
Width:54
Height:40
Volume:45
Depth:36
Looking for a larger, more dramatic opening fireplace? Look no further than the Isokern Magnum fireplace. This fireplace system is ideal for large custom homes, hotel lobbies and restaurants. Boasting opening heights of 38” tall and up to 72” wide, it will make a statement in any room.
Custom Available Sizes: 36 • 42 • 48 • 60 • 72
CUSTOM ISOKERN FIREPLACES CARRY NO LISTING, UL OR OTHERWISE.
| Minumum Framing Requirements | Weight |
| To Be Determined On Site | 1648 lbs |
| Clearance to Combustibles | Dimension |
| Unit front (Smoke Dome) | 0 inches |
| Unit sides and rear | 1.5 inches |
| Combustible sheathing above opening top | 8 inches |
| Sheathing or trim to opening sides | 8 inches |
| Mantel above opening. | 14 inches |
| Opening to sidewall | 26 inches |
| Hearth Extension beyond front | 20 inches |
| Hearth Extension beyond sides | 12 inches |
| Insulation from firebox and chimney | 3 inches |
FOR USE WITH ISOKERN ECO-STEEL CLASS-A CHIMNEY
X-VENTISO MECHANICAL VENTILATION ASSISTANCE IS REQUIRED FOR THIS DESIGN. PLEASE CONSULT AN ISOKERN SALES REPRESENTATIVE ON SPECIFIC INSTALLATION REQUIREMENTS.
